CRANE SCALES with Heat Insulating Shield & Wireless Indicator (CCS)( 200g to 15ton ) Manufacturer Supplier and Exporters
Contech manufactures Crane Scales for weighing upto 50 ton. Options available are remote key panel, heat shielding for high temperature application in foundries, Metallurgy and wireless remote Indicator.

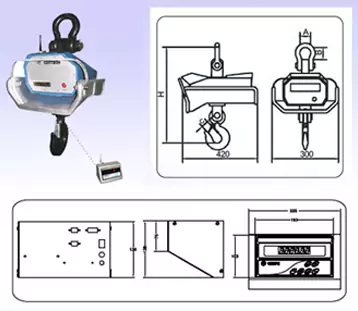

CRANE SCALES with Heat Insulating Shield & Wireless Indicator (CCS) (1, 2, 3, 5, 10, 15 ton)
- Heavy duty aluminum diecast enclosure.
- Special construction for high temperature shielding.
- Minimum distance for normal operation is 2 mtr from a heat radiation source at 1500o C.
- Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
- All specifications are same as standard crane scales with heat insulating shield(CCS) except there is no display on the scale and there is no remote keyboard.
- Power indication LED on the scale.
- Battery & charger for the loadcell & transmitter inside the scale.
- Weight display on the desktop indicator along with controls.
- RS-232 interface in the indicator.
- Storage of weights in memory upto 100 samples.
Specifications :
| MODELS | CAPACITY | ACC | DIMENSION | NET Weight (Kg) |
|||
| H | A | B | C | ||||
| CCS-1T200 | 1ton | 200g | 465 | 56 | 65 | 25 | 26 |
| CCS-2T500 | 2ton | 500g | 490 | 56 | 65 | 32 | 30 |
| CCS-3T1K | 3ton | 1kg | 570 | 72 | 90 | 36 | 36 |
| CCS-5T2K | 5ton | 2Kg | 640 | 90 | 110 | 50 | 42 |
| CCS-10T5K | 10ton | 5Kg | 920 | 140 | 230 | 60 | 77 |
| CCS-15T5K | 15ton | 5Kg | 980 | 140 | 230 | 70 | 85 |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
