INDUSTRIAL SCALES Manufacturer Supplier and Exporters

Contech offers total weighing solution for all the Industrial segments with various options. The applications are Table Top Scales, Piece Counting Scales, Platform Scales, Floor Scales, Pallet Scales, Waterproof Scales, Flameproof Scales, etc.

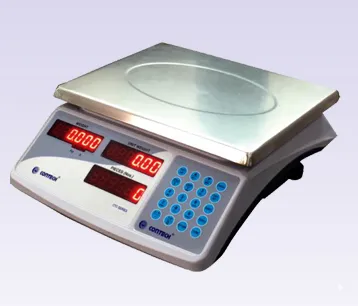

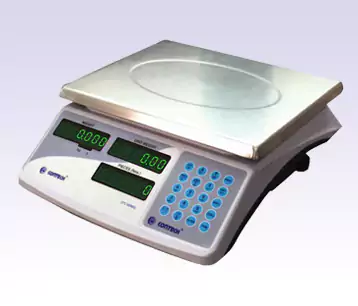

PIECE COUNTING SCALES - AVAILABLE IN TABLETOP (0.5 g - 35 kg) and Platform ( 2 g - 1 ton)

* 3 separate display to indicate weight, unit weight and quantity.
* Numeric keyboard for easy entry of unit weight/sample quantity.
* Automatic count improvement mode.
* Resettable set points for check counting.
* Comparator function with audio indication (buzzer).
* Accumulation and recalling of counts with date/time.
* Optional comparator with relay outputs.
* Print option with date/time, count and weight.

Specifications:

Models CTC-6001 CTC-10002 CTC-15005 CTC-30K1 CTP-35K5
Capacity 6kg 10kg 15kg 30kg 35kg
Readability 0.1g 0.2g 0.5g 1g 5g
Repeatability(+/-) 0.1g 0.2g 0.5g 1g 5g
Linearity (+/-) 0.2g 0.4g 1g 2g 5g
Pan Size 225mm x 300mm 225mm x 300mm 225mm x 300mm 225mm x 300mm 225mm x 300mm



Models

CP-75K5

CP-100K10

CP-200K20

CP-300K20

CP-500K50

CP-1T100

  Capacity

75kg

100kg

200kg

300kg

500kg

1 Ton

  Readability

5g

10g

20g

20g

50g

100g

  Repeatability(+/-)

5g

10g

20g

20g

50g

100g

  Linearity (+/-)

10g

20g

40g

40g

100g

200g

  Pan Size 400mm x 400mm 450mm x 500mm

600mm x 600mm

600mm x 600mm

750x750mm

1000x1000 mm

Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
